If you are starting a new project, upgrade to the UltimaSerial (Version 3) now! UltimaSerial (version 3) supports USB-based DI-148, DI-158, DI-710 & DI-715B

Along with the installation of UltimaSerial ActiveX control, the following VB sample programs are placed under the C:\UltimaSerial\VB directory (Delphi, LabView, VC, TestPoint and Excel programs are covered in other pages).

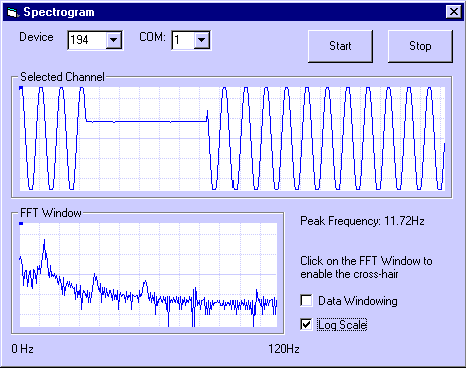

Click here to learn how to use these serial devices to study the frequency domain in real time

Come to my eLessons if this is your first time to use ActiveX control in Visual BASIC!

Click here to see the FAQs regarding Dataq serial devices and programming issues.

AnalogInput
LimitLine
AnalogWaveform
AnalogWaveformTimer
AnalogWaveformWithSnapShot
AnalogTrigger
DigitalInput
DigitalWaveform
EventCounter
DigitalTrigger
EventCounterTrigger
LevelEnabledWave
GenerateCalculatedWaveform
Temperature
SmoothAnalogWaveform
UltimaPanel

Note: Microsoft Visual Basic 5.0 or higher is needed to use these sample programs.

Sample AnalogInput: reads from analog channel 1 and converts it into voltage for display (a +/- 10V device is assumed in the conversion). The reading speed is paced by a Timer Click here for a screen shot!

Properties/methods/events:

UltimaSerial.Device, UltimaSerial.CommPort, UltimaSerial.ChannelCount, UltimaSerial.SampleRate, UltimaSerial.Start, UltimaSerial.Stop, and UltimaSerial.AnalogInput

Sample Temperature: reads the thermister connected to analog channel 1 of DI-151RS and converts it into temperature for display. If you need more accurate reading, please refer to DI-151RS User's Manual for more info. The reading speed is paced by a Timer Click here for a screen shot!

Properties/methods/events:

UltimaSerial.Device, UltimaSerial.CommPort, UltimaSerial.ChannelCount, UltimaSerial.SampleRate, UltimaSerial.Start, UltimaSerial.Stop, and UltimaSerial.AnalogInput

Due to the resolution of DI-194, you may not use thermister with this device.

If you need to use thermocouple to measure a wider temperature range, please consider DI-195B with 5B-47 Modules

Sample LimitLine: sets the LimitLine at when analog channel 1 below 0V. LimitLine event will be fired when the input signal on analog channel 1 goes below 0V. Click here for a screen shot!

Properties/methods/events:

UltimaSerial.Device, UltimaSerial.CommPort, UltimaSerial.ChannelCount, UltimaSerial.SampleRate, UltimaSerial.Start, UltimaSerial.Stop, UltimaSerial.LimitLine and UltimaSerial.SetLimitLine

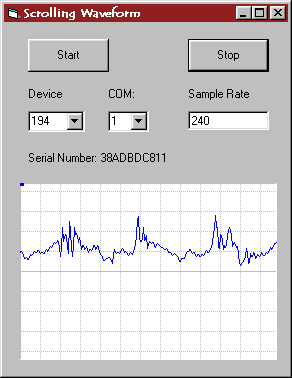

Sample AnalogWaveform: acquires and displays the data as a scrolling waveform. Click here for a screen shot!

Properties/methods/events:

UltimaSerial.Device, UltimaSerial.CommPort, UltimaSerial.ChannelCount, UltimaSerial.SampleRate, UltimaSerial.Start, UltimaSerial.Stop, UltimaSerial.GetData, UltimaSerial.NewData, and UltimaSerial.EventLevel

Sample AnalogWaveformTimer: Use timer as pacer to acquires and displays the data as a scrolling waveform

Properties/methods/events:

UltimaSerial.Device, UltimaSerial.CommPort, UltimaSerial.ChannelCount, UltimaSerial.AvailableData, UltimaSerial.SampleRate, UltimaSerial.Start, UltimaSerial.Stop, and UltimaSerial.GetData,

Sample SmoothAnalogWaveform: acquires and displays the data as a scrolling waveform using the smooth-scrolling feature (This sample should be compiled and run outside of VB IDE due to the restriction of VB IDE).

Properties/methods/events:

UltimaSerial.Device, UltimaSerial.CommPort, UltimaSerial.ChannelCount, UltimaSerial.SampleRate, UltimaSerial.Start, UltimaSerial.Stop, UltimaSerial.GetData, UltimaSerial.NewData, UltimaSerial.EventLevel, and UltimaSerial.SmoothScrolling

Sample AnalogWaveformWithSnapShot: acquires and displays the data as a scrolling waveform. While the waveform is scrolling, pushing a key will take a snapshot of the waveform

Properties/methods/events:

UltimaSerial.Device, UltimaSerial.CommPort, UltimaSerial.ChannelCount, UltimaSerial.SampleRate, UltimaSerial.Start, UltimaSerial.Stop, UltimaSerial.GetData, UltimaSerial.GetDataFrame, UltimaSerial_DriverError, UltimaSerial.NewData, and UltimaSerial.EventLevel

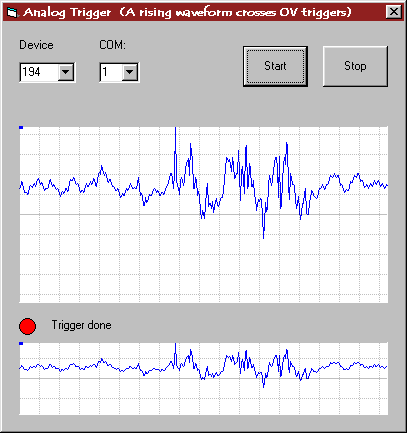

Sample AnalogTrigger: acquires data when the analog channel 1 crosses a specified trigger level. 184 samples will be acquired before and after the trigger point. Click here for a screen shot!

Properties/methods/events:

UltimaSerial.Device, UltimaSerial.CommPort, UltimaSerial.ChannelCount, UltimaSerial.SampleRate, UltimaSerial.Start, UltimaSerial.Stop, UltimaSerial.TriggerChannel, UltimaSerial.AcquisitionMode, UltimaSerial.TriggerLevel, UltimaSerial.PreTriggerLength, UltimaSerial.PostTriggerLength, UltimaSerial.TriggerStatus, UltimaSerial.MapErrorMessage, UltimaSerial.GetData, UltimaSerial.GetDataFrame, UltimaSerial_DriverError, UltimaSerial.NewData, UltimaSerial.EventLevel

Sample DigitalInput: reads digital channels. The reading speed is paced by a Timer

Properties/methods/events:

UltimaSerial.Device, UltimaSerial.CommPort, UltimaSerial.ChannelCount, UltimaSerial.SampleRate, UltimaSerial.Start, UltimaSerial.Stop, and UltimaSerial.DigitalInput

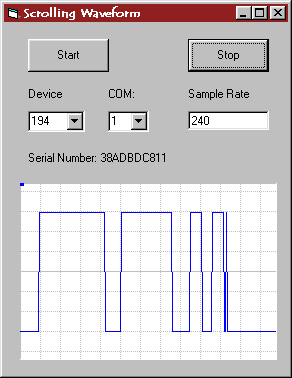

Sample DigitalWaveform: acquires and displays the digital channel 1 in a scrolling waveform. Click here for a screen shot!

Properties/methods/events:

UltimaSerial.Device, UltimaSerial.CommPort, UltimaSerial.ChannelCount, UltimaSerial.MaskOutDigitalBits, UltimaSerial.SampleRate, UltimaSerial.Start, UltimaSerial.Stop, UltimaSerial.GetData, UltimaSerial_DriverError, UltimaSerial.NewData, UltimaSerial.EventLevel

Sample DigitalTrigger: acquires data when the digital channel 1 goes from low to high. 184 samples will be acquired before and after the trigger point.

Properties/methods/events:

UltimaSerial.Device, UltimaSerial.CommPort, UltimaSerial.ChannelCount, UltimaSerial.SampleRate, UltimaSerial.Start, UltimaSerial.Stop, UltimaSerial.TriggerChannel, UltimaSerial.AcquisitionMode, UltimaSerial.TriggerLevel, UltimaSerial.PreTriggerLength, UltimaSerial.PostTriggerLength, UltimaSerial.TriggerStatus, UltimaSerial.MapErrorMessage, UltimaSerial.GetData, UltimaSerial.GetDataFrame, UltimaSerial_DriverError, UltimaSerial.NewData, UltimaSerial.EventLevel

Sample EventCounter: reads and displays event counters and digital channels. The reading speed is paced by a Timer. Click here for a screen shot!

Properties/methods/events:

UltimaSerial.Device, UltimaSerial.CommPort, UltimaSerial.ChannelCount, UltimaSerial.SampleRate, UltimaSerial.Start, UltimaSerial.Stop, UltimaSerial.TransitionCounter, UltimaSerial.ResetCounter, UltimaSerial_DriverError, UltimaSerial.NewData, UltimaSerial.EventLevel

Sample EventCounterTrigger: acquires data on the fourth low-to-high transition on digital channel 1. 184 samples will be acquired before and after the trigger point.

Properties/methods/events:

UltimaSerial.Device, UltimaSerial.CommPort, UltimaSerial.ChannelCount, UltimaSerial.SampleRate, UltimaSerial.Start, UltimaSerial.Stop, UltimaSerial.TriggerChannel, UltimaSerial.AcquisitionMode, UltimaSerial.TriggerLevel, UltimaSerial.PreTriggerLength, UltimaSerial.PostTriggerLength, UltimaSerial.TriggerStatus, UltimaSerial.MapErrorMessage, UltimaSerial.GetData, UltimaSerial.GetDataFrame, UltimaSerial_DriverError, UltimaSerial.NewData, UltimaSerial.EventLevel

Sample LevelEnabledWave: only acquires data when the analog channel 1 goes above reading 13000 (about 3.9V for a +/-10V input device)

Properties/methods/events:

UltimaSerial.Device, UltimaSerial.CommPort, UltimaSerial.ChannelCount, UltimaSerial.SampleRate, UltimaSerial.Start, UltimaSerial.Stop, UltimaSerial.TriggerChannel, UltimaSerial.AcquisitionMode, UltimaSerial.TriggerLevel, UltimaSerial.PreTriggerLength, UltimaSerial.PostTriggerLength, UltimaSerial.TriggerStatus, UltimaSerial.MapErrorMessage, UltimaSerial.GetData, UltimaSerial.GetDataFrame, UltimaSerial_DriverError, UltimaSerial.NewData, UltimaSerial.EventLevel

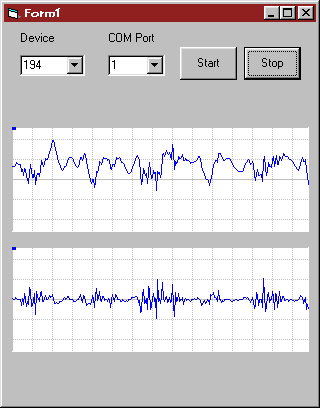

Sample GenerateCalculatedWaveform: acquires data from analog channel 1 and calculate the rate of change of it and post it as second waveform . Both waveform will be displayed and stored in a WinDaq file. Click here for a screen shot!

Properties/methods/events:

UltimaSerial.Device, UltimaSerial.CommPort, UltimaSerial.ChannelCount, UltimaSerial.SampleRate, UltimaSerial.Start, UltimaSerial.Stop, UltimaSerial.GetDataEx, UltimaSerial_DriverError, UltimaSerial.NewData, UltimaSerial.EventLevel

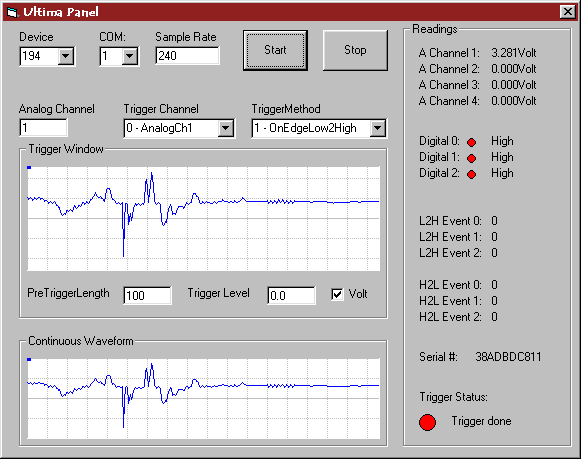

Sample UltimaPanel: is the ultimate sample program which uses almost all properties, methods and events. It has a trigger enabled scope, and a continuous scrolling waveform, along with readings from all analog, digital, and event counter channels. Take a look at this one if you are an experienced VB programmer. Click here for a screen shot!

Last update: 10/05/07
